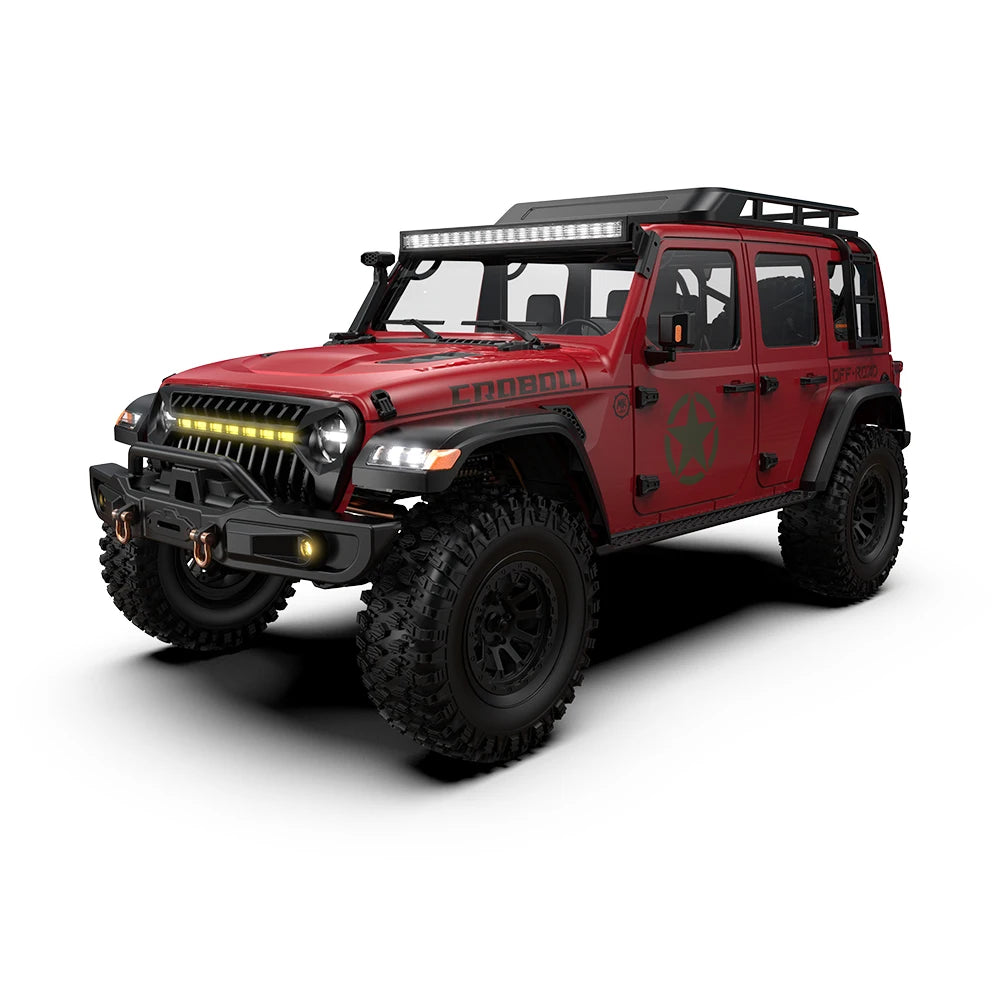

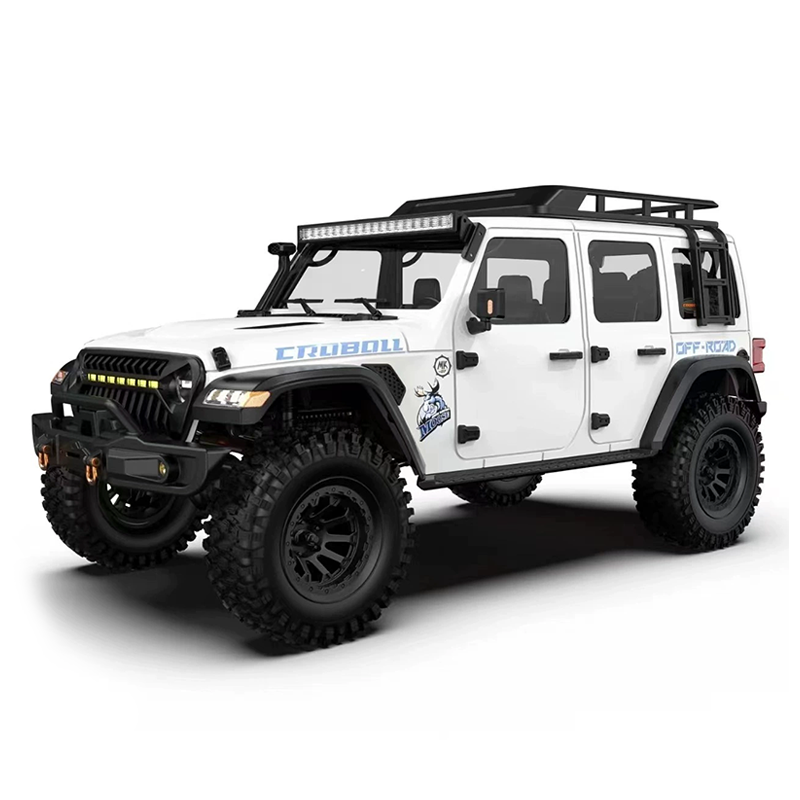

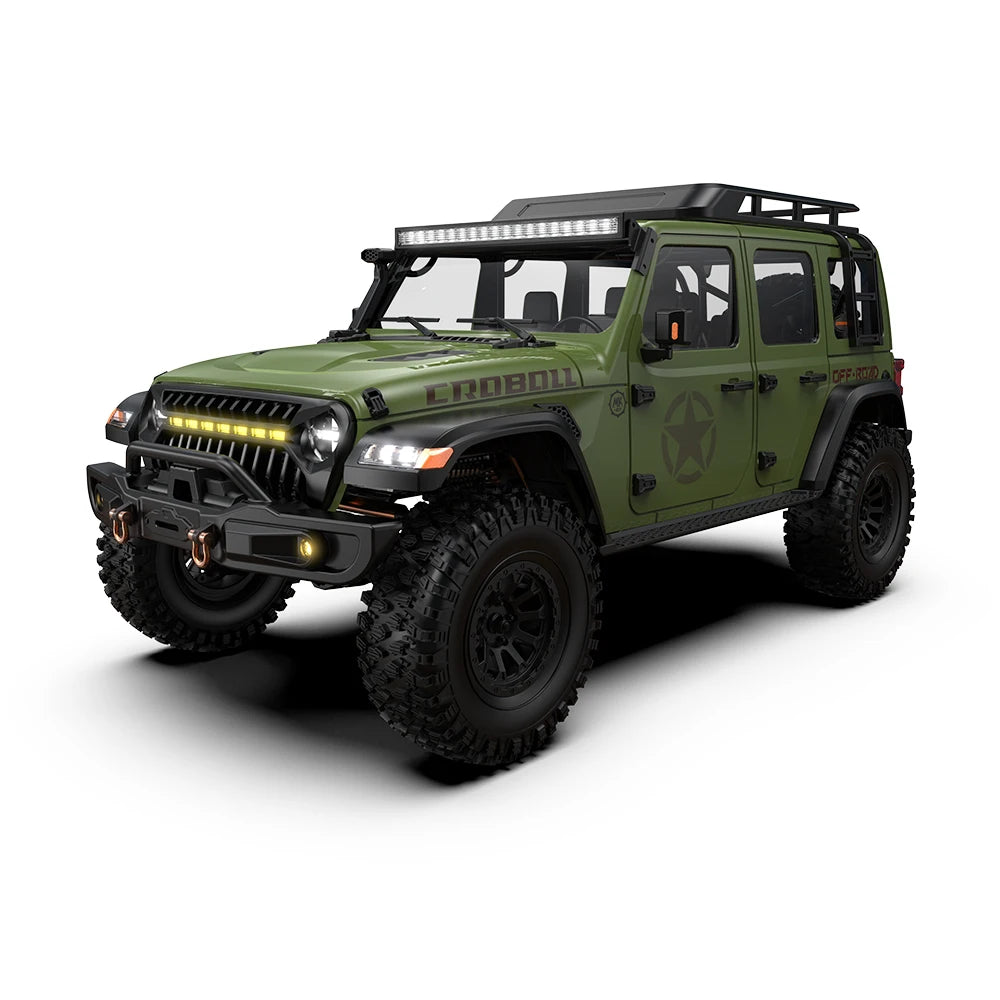

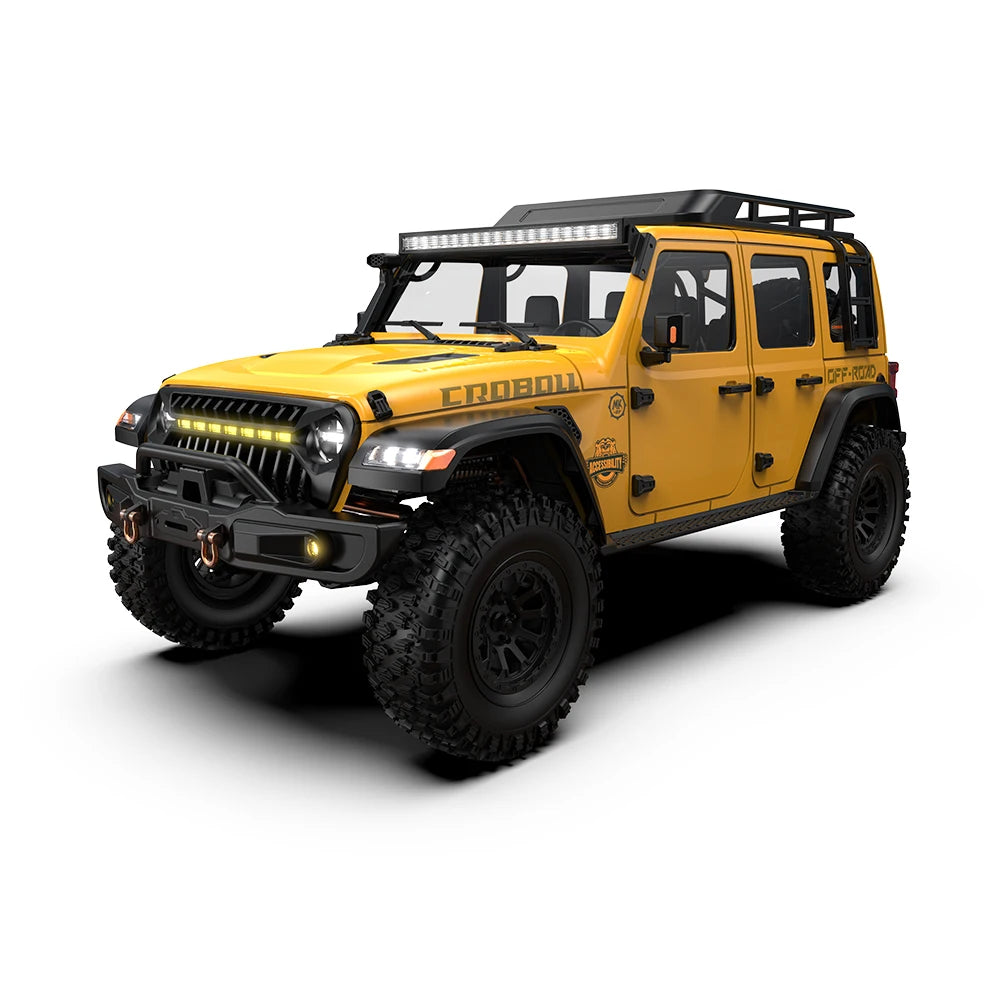

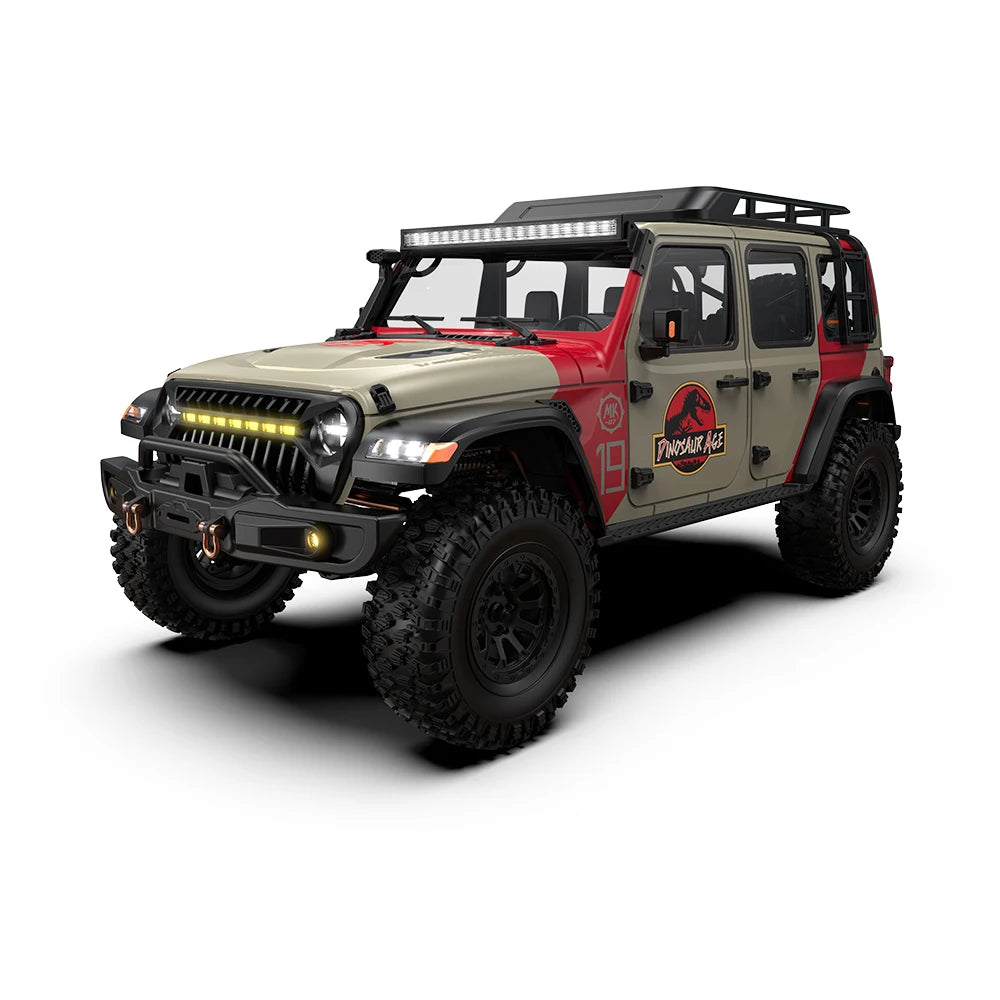

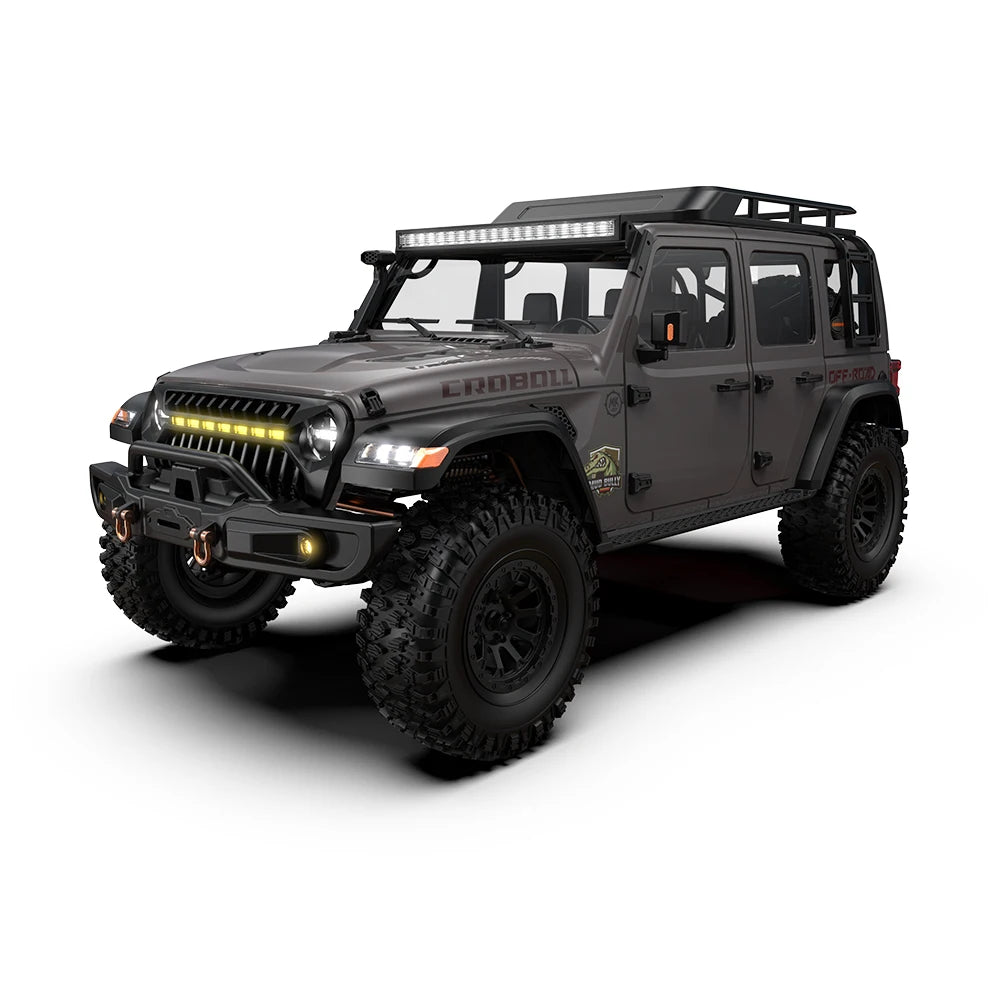

1/7 Scale Large Jurassic Limited Edition Brushless Off-Road Vehicle -

Product Description

Large Off-Road Climbing Vehicle: This 1:7 scale off-road climbing vehicle is designed for thrill-seekers and those who crave the excitement of driving a large remote-controlled car.
Remote Control Range: Control the vehicle from up to 350 meters away and enjoy expansive off-road adventures.
Dual-Speed Differential Lock: Experience superior traction; the dual-speed differential lock is ideal for conquering challenging terrain.
Ready-to-Run Assembly: No complicated setup required; the remote-controlled car is ready to use right out of the box.
Battery Life: Enjoy 20 minutes of playtime on a single charge, allowing for extended fun.

Product Specifications

(Brushed Version)

(Brushless Version)

Dimensions L*W*H (mm): 700mm*325mm*340mm
Wheelbase (mm): 439mm
Body Shell: 1.5mm PC body shell
Tire Diameter (mm): 145mm
Tire Width (mm): 58mm
Ground Clearance (mm): 90mm
Maximum Battery Compartment Size (mm): 164mm*49mm
Approach Angle: 58°
Departure Angle: 54°
Weight: 7kg
Servo: 40kg waterproof steering servo, 4 x 25g servos
Remote Control: 2.4G color screen 8-channel, 350m control distance, with light control
Shock Absorbers: Adjustable coilover, CNC metal hydraulic shock absorbers
Chassis: 6mm thick high-strength CNC chassis
Tie Rods: Full CNC stainless steel tie rods
Front and Rear Differential: Independently switchable
Gearbox: High and low speed selectable, front-wheel drive, rear-wheel drive, and four-wheel drive selectable
Drive Shaft: All-metal material, universal joint
Low-Speed Final Drive Ratio: 1:59
High-Speed Final Drive Ratio: 1:29
Motor Pinion Gear: 14T
Reduction Gear: 36T
Secondary Reduction Ratio: 16T/30T
High-Speed Gear Ratio: 20T/20T
Low-Speed Gear Ratio: 14T/26T
Drive Gear: 11T
Differential Gear: 6T
Portal Axle Reduction Gear: 15T/30T
Connector: Aluminum alloy 17mm hexagon
