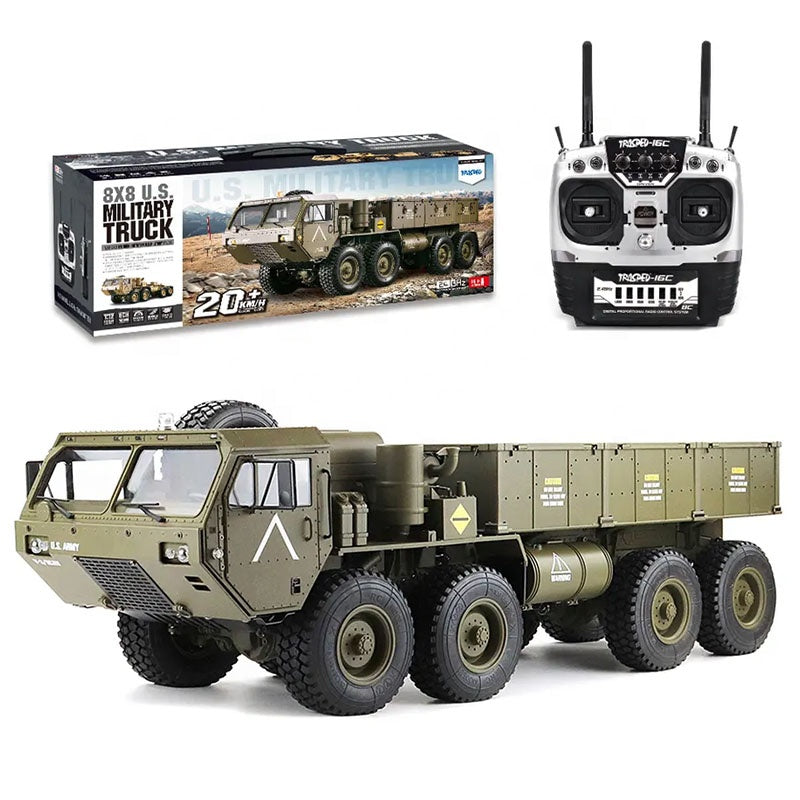

1/12 RC Electric Heavy-Duty Crawler Off-Road Military Truck - SGY1

Product Description

• The SGY39 with a cargo box can carry up to 10KG of load. Maximum climbing angle: 35° (low speed); 15° (high speed). Maximum wading depth: 55mm. Minimum turning radius: approximately 1 meter. Maximum ditch crossing width: 180mm. Battery and charger are not included by default and must be purchased separately.

Specifications

• Item No. SGY38
• Product Name 1/12 2.4G 8-Wheel Military Truck (without battery and charger) Brushed Version
• Motor 550-class high-torque brushed motor
• Speed Controller 320A independent electronic speed controller
• Product Specifications Vehicle: 739.5×218.5×242.5mm (Length×Width×Height)
• Battery Recommended 7.4V 2S T-plug (not included)
• Wheelbase: (128mm)×258mm×(128mm)
• Frequency 2.4G HZ Wheelbase: 218.5mm Wheel Diameter: R111mm
• Remote Control Distance Approx. 80 meters
• Packaging English front box, EPP inner box, double opening (with handle)
• Remote Control Type Full Proportional Synchronous Control System (Square Control) 8 Channels
• Color Box Specifications: 78×30×28cm (Length×Width×Height)
• Remote Control Time 20 minutes (Brushed low-speed test)
• Charger (Not included)
• Outer box dimensions: 93*29.8*3.4cm
• Remote control batteries: 6*1.5V AA batteries (Not included)
• Gross weight: 13.5KG
• Net weight: 11.4kg
• Protection functions: 1. Low voltage alarm; 2. High temperature power-off protection; 3. 15A voltage regulation
• Speed: Low speed 12 km/h; High speed 18 km/h
• Materials: Hardware, zinc alloy, electronics, plastic

Product Performance Parameters

• Maximum Climbing Angle: Low Speed 35°; High Speed 15°
• Maximum Wading Depth: 55mm
• Maximum Load Capacity (801): 10KG
• Minimum Turning Radius: Approximately 1 meter
• Maximum Ditch Crossing Width: 180mm
• Vehicle battery: 7.4V 3000mAh high-rate lithium battery (battery and charger not included with shipment, must be purchased separately).

Detailed Configuration Parameters

• 2.4G square remote control, 8-channel full-proportional synchronous remote control system
• Two 15kg copper-tooth digital servos (high-power steering)
• Independent 15A regulated power supply for steering servos
• Two adjustable mechanical gears in the central transmission (remotely adjustable)
• The entire chassis structure is made of zinc alloy material.
• Front and rear axles adopt a bevel-to-straight gear high-load reduction transmission structure.
• Spring steel sheet shock absorbers + telescopic double shock absorbers
• Variable stroke CVD ball joint driveshaft
• Front and rear independent linkage axle suspension system
• Rear bed side panels can be fully opened
• Aluminum alloy floor
• 8x8/ 8-wheel all-time drive, 550W high-torque motor (3660 brushless motor) utilizing a planetary gear drive structure
• 1:12 full-scale high-fidelity simulation model of the entire vehicle; 320A independent electronic speed controller/60A brushless ESC
• Lighting and simulated sound systems can be upgraded on any platform.
• The front four wheels use a steel cable pull structure to achieve synchronous steering in the same direction.
